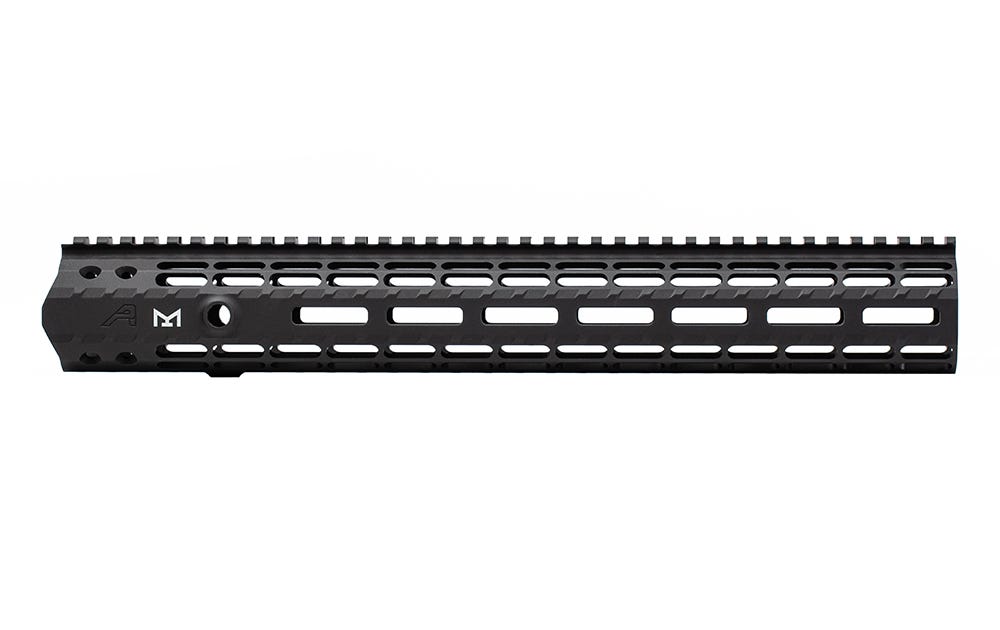

M5 (.308) Enhanced M-LOK Handguards, Gen 2
Our Enhanced M-LOK (EM) Handguards provide a lightweight free float design for your custom M5 .308 build. The M-LOK system allows advanced modularity past the current 1913 picatinny rail system. Machined to mil-spec dimensions and engineered to perfection, this handguard eliminates bulk while retaining strength and stability.
Features:
- 1pc free float design
- Built in anti-rotation tabs
- Scalloped rails
- 1.72" inside diameter (from barrel nut cut to forward end) fits most muzzle devices and 1.5" suppressors
- 1.78" inside barrel nut cut area diameter
- Compatible with low profile gas blocks
- DPMS High Profile (.210) Tang
- Gen 2 Feature - Quick disconnect sling socket at the 3, 6 and 9 o'clock positions
- Gen 2 Feature - Additional milling along flats to aid with gripping and add visual appeal
- Gen 2 Feature - New profile for the continuous picatinny top rail
Are you attaching this handguard to a standard threaded upper receiver?
Make sure to select "Yes" under the Handguard Barrel Nut option above (shims included). Our handguards use either the DPMS/Aero or Armalite interface and do not work with a standard barrel nut. If you are using our M5E1 Enhanced Upper Receiver, no additional pieces are needed. Purchased with a handguard, the M5 Barrel Nut is $20 ($40 when sold separately).
*Please note - This handguard is specific to the M5 .308/M5E1 platform. It is not compatible with the AR15/M4E1 platform.
| Made In America? | Yes |
|---|---|
| Platform | M5 |
| Series | M5E1 |
| Attachment Type | M-LOK |
| Material | Machined from 6061-T6 aluminum |
| Actual Handguard Lengths | 12.7" - 12.63", 15" - 14.94", 16" - 16.6"
Aero Precision rail lengths measure from end to end. This is the point of contact at the receiver to the end of the last picatinny slot at the muzzle. |
| Weight(s) | 12.7" - 9.9 oz / 15" - 11.3 oz / 16.6" - |
| Other | Handguard Screw Torque - 25 in-lbs |
