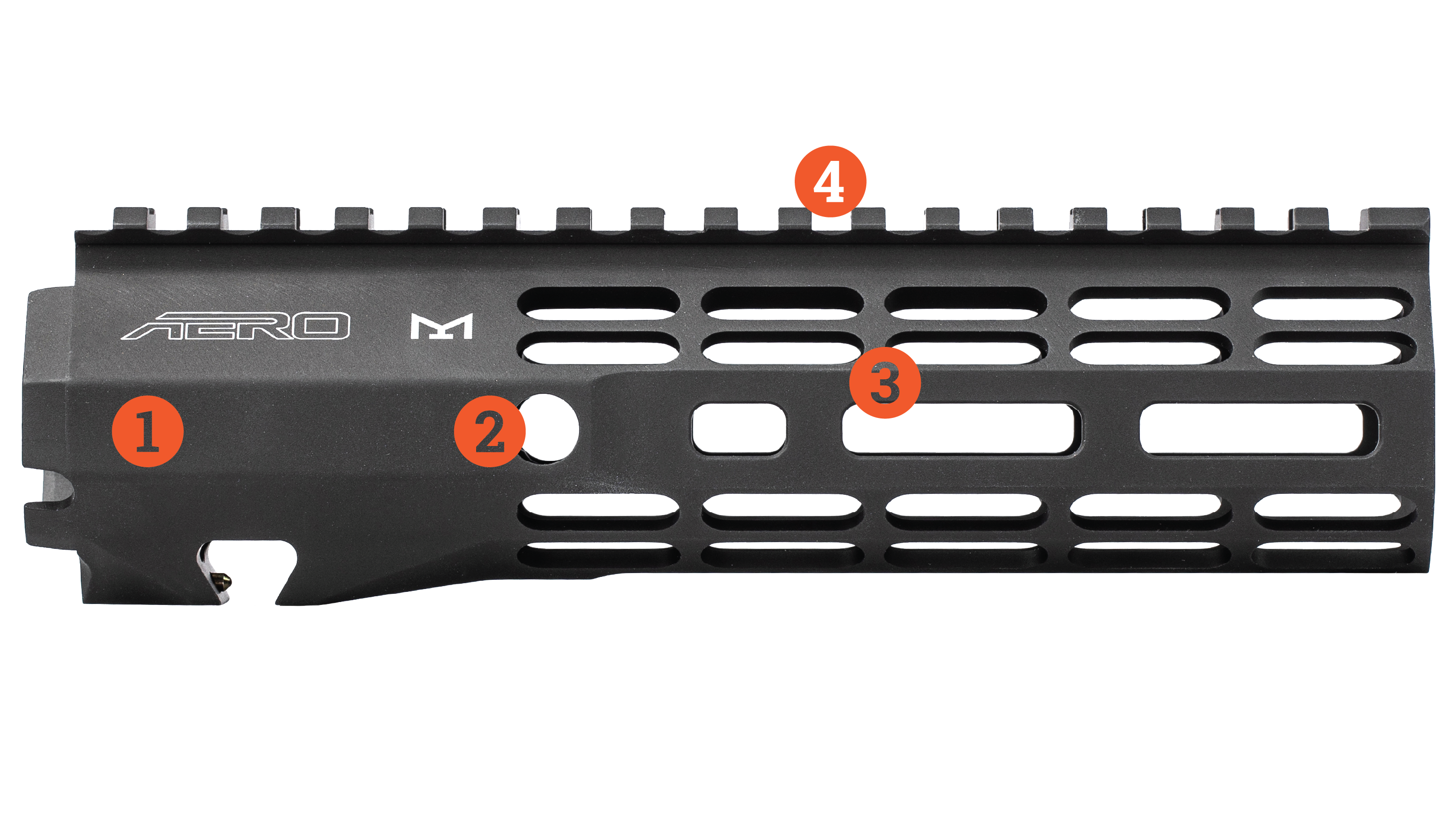

Machined from 6061-T6 Aluminum, the R-ONE line of handguards are designed with size and weight in mind, providing the perfect handguard for your lightweight build. Our proprietary Aero Taper Lock Attachment System is a durable and dependable mounting platform, maintaining a slim profile while still providing the strength and stability customers have grown to love from Aero Precision handguards.
Available in M-LOK® profiles with 4.8", 7.3", 9.3", 10.3", 12.7", 15" and 16.6" options.
Taper Lock Attachment System
The new Aero Taper Lock Attachment System is both functional and aesthetically pleasing. It features 2 mirrored tapered locking nuts that provide evenly distributed clamping pressure across a custom engineered barrel nut with use of a turnbuckle screw. A ratcheting detent further secures the design while providing positive registration during installation. By design, the even pressure of the Aero Taper Lock Attachment System avoids distortion of the handguard often seen with current applications during installation.
All hardware mounting parts are included with the purchase of an R-ONE Handguard.
Lightweight By Design
- M-LOK Handguard Weights: 4.8" - 3.9 oz / 7.3" - 5.22 oz / 9.3" - 6.03 oz / 10.3" - 6.7 oz / 12.7" - 8 oz / 15" - 9.07 oz / 16.6" -
- Mounting Hardware Weight: 1.9 oz (same across all ATLAS Handguard options)
Features:
- Full top picatinny rail for optional attachments
- Quick disconnect sling socket at the 3, 6 and 9 o'clock positions
- Compatible with low profile gas blocks
- 1.3" Inside diameter
- 1.5" Outside diameter
- Compatible with mil-spec AR15 upper receivers and barrels
- NOT Compatible with M4E1 Enhanced Upper Receivers
R-ONE Handguards are designed to match seamlessly with our M4E1 Threaded Upper Receivers. Additionally, they are compatible with any Mil-Spec AR-15 upper receivers as well. However, they may not be compatible with billet upper receivers due to indexing tabs.
Please note: The R-ONE Handguards are NOT compatible with our M4E1 Enhanced Upper Receiver.
Made In America? | Yes |
---|---|
FFL SOT Shipping Required | No |
Platform | AR15 |
Series | R-ONE/S-ONE |
Attachment Type | M-LOK |
Material | Machined from 6061-T6 aluminum |
Actual Handguard Lengths | 4.8", 7.3", 9.3", 10.3", 12.7", 15", 16.6"
Aero Precision rail lengths measure from end to end. This is the point of contact at the receiver to the end of the last picatinny slot at the muzzle. |
Weight(s) | 4.8" - 3.9 oz / 7.3" - 5.22 oz / 9.3" - 6.03 oz / 10.3" - 6.7 oz / 12.7" - 8 oz / 15" - 9.07 oz / 16.6" - |
Other | Mounting Hardware Weight: 1.9 oz |
