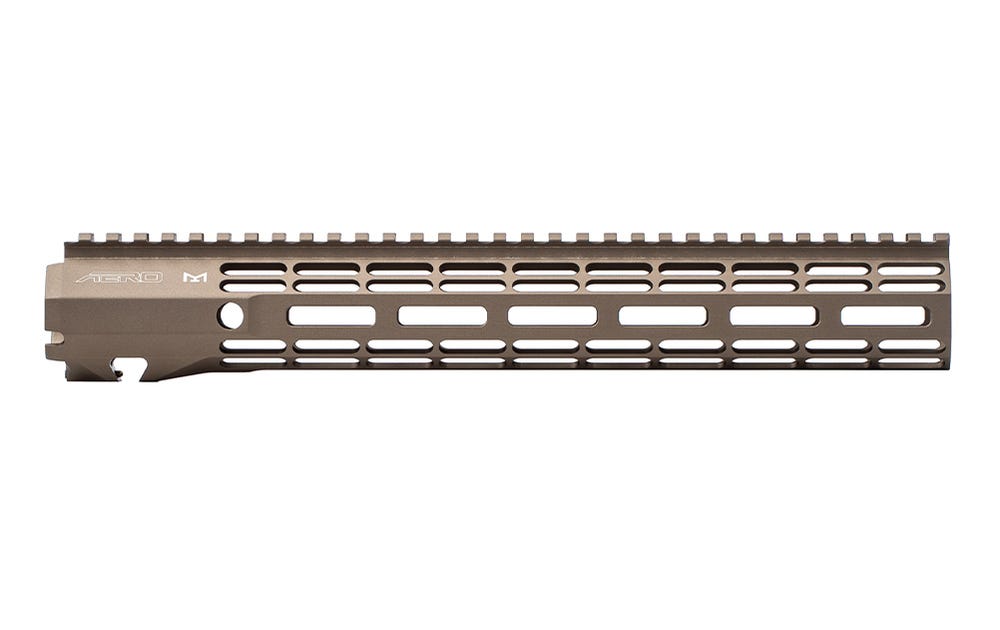

AR15 12.7" R-ONE M-LOK Handguard - Kodiak Brown Anodized
NOTE: This part features a colored anodized finish. These finishes are held to different aesthetic standards than parts finished in black anodizing or Cerakote. The lighter coloring allows certain aesthetic marks on the material to be visible through the finish. Some may show more or fewer signs of these defects, but the parts are guaranteed to be quality and in spec. There are also slight color variances between different materials when colored anodizing is applied. For more information on colored anodizing visit our Knowledge Center.
Available in M-LOK profiles with 10.3", 12.7" and 15" options.
Aero Taper Lock Attachment System
The new Aero Taper Lock Attachment System is both functional and aesthetically pleasing. It features 2 mirrored tapered locking nuts that provide evenly distributed clamping pressure across a custom engineered barrel nut with use of a turnbuckle screw. A ratcheting detent further secures the design while providing positive registration during installation. By design, the even pressure of the this system avoids distortion of the handguard often seen with current applications during installation.
All hardware mounting parts are included with the purchase of this Handguard!
Lightweight By Design
- M-LOK Handguard Weights: 10.3" - 6.7 oz / 12.7" - 8 oz / 15" - 9.07 oz
- Mounting Hardware Weight: 1.9 oz
Features:
- Full top picatinny rail for optional attachments
- Quick disconnect sling socket at the 3, 6 and 9 o'clock positions
- Compatible with low profile gas blocks
- 1.3" Inside diameter
- 1.5" Outside diameter
- Compatible with mil-spec AR15 upper receivers and barrels
- NOT Compatible with M4E1 Enhanced Upper Receivers
Tang Height | No |
---|---|
ATF Regulated | No |
FFL Item | No |
Made In America? | Yes |
FFL SOT Shipping Required | No |
Platform | AR15 |
Series | R-ONE/S-ONE |
Attachment Type | M-LOK |
Handguard Length | 12.7" |
Finish | Kodiak Brown Anodized |
Weight(s) | 8 oz |
Other | N/A |
